WS-855GS 15" LCD 10-Slot Workstation
性价比最高的耐用型一体化工业工作站
| Features |
| |
1. 紧凑型压铸铝质前面板和集成LCD背板框架
2. 新型构造机箱和防震抗击冲装置设计
3. 前面板、薄膜键盘、触摸鼠标板和驱动空间都符合IP65标准，使其适应恶劣环境
4. 全功能薄膜键盘和OSD键
5. 先进的散热和通风设计
6. 模拟VGA输入，适合所有类型的CPU主板 CPU卡 |
 Specifications |
| |
| LCD尺寸 |
15” |
| 分辨率 |
1024*768 |
| 亮度(cd/㎡) |
350 |
| 对比度 |
400:1 |
| LCD色彩 |
262K |
| 背光寿命(Hrs) |
50000 |
| 输入接口 |
模拟VGA (DB-15) |
| 插槽 |
10 插槽 / MB |
| 主板规格 |
全长卡/半长卡/m-ATX主板 |
| 安装方式 |
19” 机架式安装 |
| 机架高度 |
8U |
| 前面板材质 |
铝 |
| IP等级 |
IP64 |
| 薄膜键盘 |
59键 |
| 功能键 |
10键 |
| 触摸板 |
是 |
| 前置面板USB |
2 |
| 硬盘驱动器空间 |
1 x 3.5” HDD |
| CD-ROM驱动器空间 |
1 x 5.25” CD-ROM |
| 软盘驱动器空间 |
1 x 3.5” FDD |
| 系统风扇 |
12cm滚轴99.6 CFM风扇 |
| 可选触摸屏 |
5-线电阻式触摸屏 |
| 抗震动 |
5 ~ 17 Hz, 0.1” 全振幅位移
17~640 Hz, 1.5G 加速度峰峰值 |
| 抗冲击 |
10G 加速度峰峰值 (11ms) |
| 相对湿度 |
5 ~ 95%, 无冷凝 |
| 工作温度 |
0°C ~ 50°C |
| 外观颜色 |
银色(PANTONE PMS-8001) |
| 重量(NW/GW) |
12 / 18.2 kg |
| 尺寸(D×W×H)(mm) |
483 x 353 x 261 |
| 推荐背板 |
PCI-10S/10S2, PX-10S, PE-10S, IP-10S, IPX-9S, BP-10S,
HPE-7S1/8S, PE-6S / 7S / 7S2 / 8S / 9S /10S |
| 推荐ATX主板 |
IMB-9454, IMB-9452, IMB-8550, IMB-9154 |
| 电源 |
AT: ACE-925A(AP/AP-U/M)-RS, ACE-932A-RS, ACE-935AL-RS, ACE-940AP-RS,
ATX: ACE-4860AP-RS, ACE-828A(C/M/V)-RS, ACE-832A(AP/AP-S)-RS, ACE-840A-RS,
ACE-841AP-S-RS, ACE-850AP-RS-24, |
|
| |

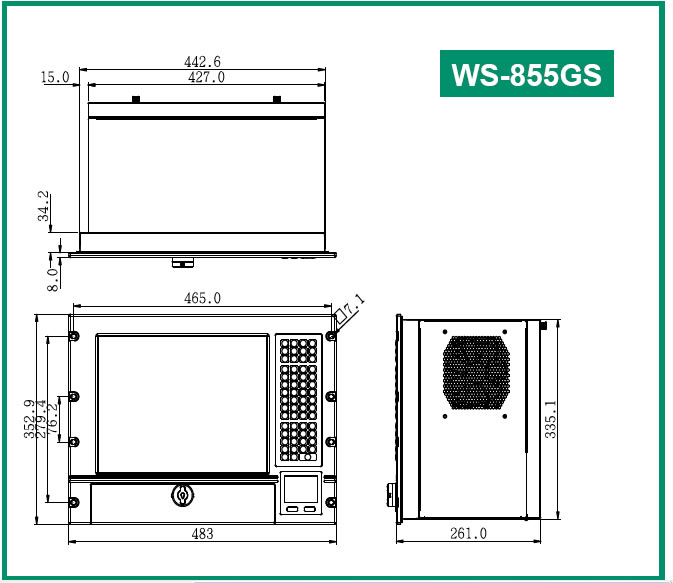

产品尺寸 |
| |
 |
 Ordering Information |
| |
| Part No. |
Description |
| WS-855GS/300W/T-R |
8U, 15" 350 cd/㎡ XGA LCD 10-Slot Industrial Workstation with 300W ATX with PFC power supply and 15" resistive touch screen, RoHS |
| WS-855GSATX/300W/T-R |
8U M-ATX 15" 350 cd/㎡ XGA LCD workstation with 300W ATX with PFC power supply and 15" resistive touch screen, M-ATX version |
|
 Packing List |
| |
| 1 * AC Power Cable (P/N:32000-000002-RS) |
1 * VGA Cable (P/N:32000-023200-RS) |
| 1 * PS_ON Cable for ATX signal (P/N:32100-034801-RS) |
4 * Press Stick Kit (Long) (P/N:41015-0003C0-00-RS) |
| 3 * Press Stick Kit (Short) (P/N:41015-0004C0-00-RS) |
7 * Press Stick Rubber (P/N:47001-000101-RS) |
| 1 * User Manual (P/N:47001-000101-RS) |
1 * KeyPad / MousePad PS/ Cable (P/N:32000-075000-RS) |
| 1 * KeyPad / MousePad PS/ Cable (P/N:32000-078400-RS) |
1 * RS-232 Cable / Touch Pen / Driver CD-ROM for Touch Screen (P/N:32000-000050-RS) |
|
